    Portable rig BZ-30

    The company has professional and technical personnel, R&D engineers and after-sales service personnel to form an experienced team.

    Soil sampling rig

    Portable exploration rig

    Hydraulic core drill

    Reverse/positive circulation well drilling rig

    The engineering drilling machine

    Portable rig BZ-30

    Mobile Station
    查看手機(jī)站
    Bz-30 gasoline engine portable sampling rig?一、Introduction to bZ-30 Gasoline Portable rigBz-30

    信息詳情


    輕便鉆機(jī)BZ-30 (2).jpg

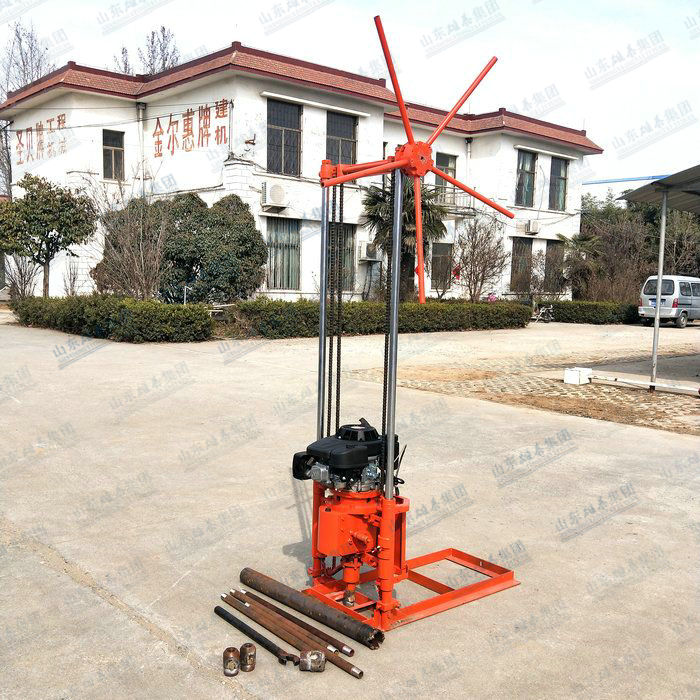

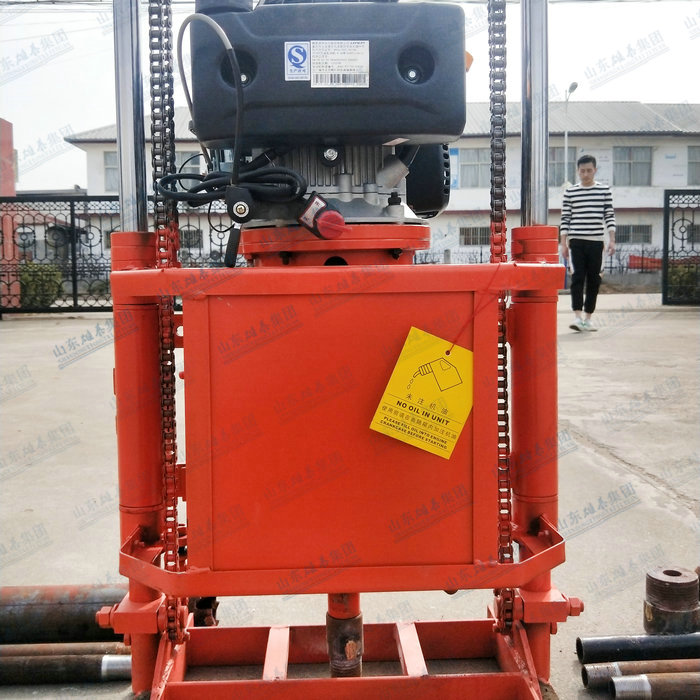

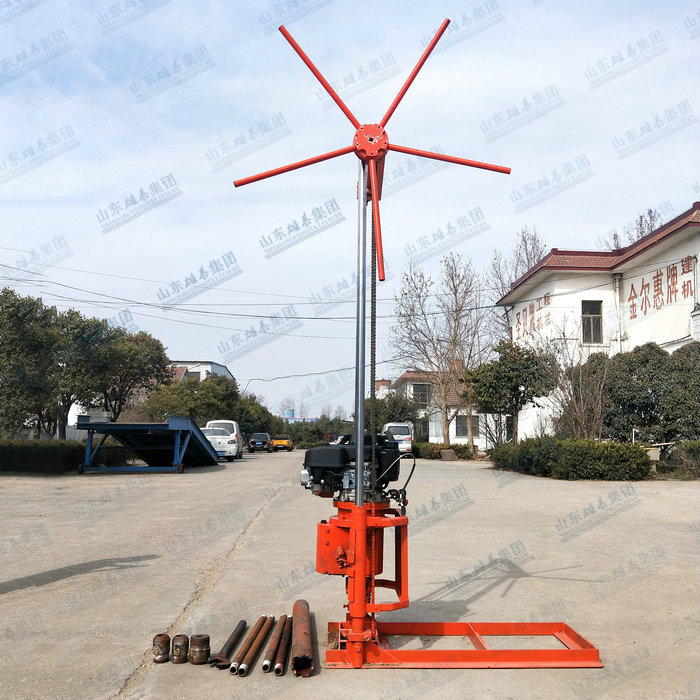

    Bz-30 gasoline engine portable sampling rig

    一、Introduction to bZ-30 Gasoline Portable rig

    Bz-30 gasoline portable drilling machine is a mature product of our company's multi-purpose micro-engineering drilling machine with large torque after a long period of research. It is suitable for mountain exploration, industrial and civil construction, bridge, railway, highway and other industries geological exploration, geophysical exploration hole, grouting hole, blasting, inspection hole and so on.

    二、Drill characteristics:

    The main part of the machine is made of aluminum alloy, which greatly reduces the weight. The overall structure is compact, small in size and light in weight.

    三、Parameters of bZ-30 gasoline portable sampler

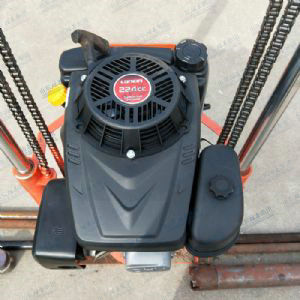

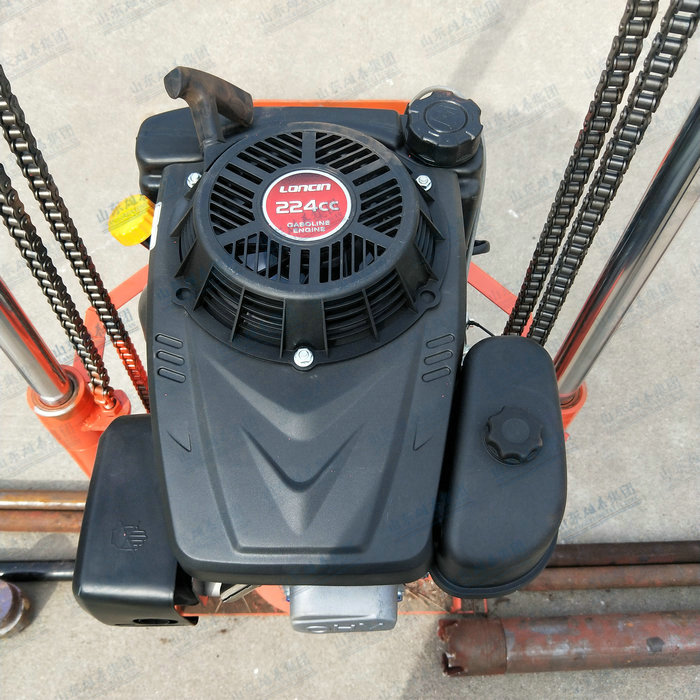

    The BZ-30 portable drilling machine adopts the displacement of 224CC gasoline engine with large horsepower and full power. The drilling range is from 45mm-108mm, and the manual compression feed is fast. The overall size is small to meet your actual needs.

    Bz-30 portable sampling rig
    Drilling Diameter(mm)45-108
    Drilling Depth(m)30
    Drill rod caliber(mm)32
    Gasoline enginedisplacement(cc)224
    horsepower(HP)6(4.5KW)
    Rig weight(KG)100
    四、The bZ-30 gasoline engine light sampling rig is equipped in a complete set
    The name of themodelunitThe number of
    Gasoline engine sampling rigBZ-30Taiwan1
    Drill pipeΦ32*750The root20
    Lock took overφ40pay20
    headΦ45公/38母a2
    Core tube0.75米/根φ45The root1
    Alloy bitΦ46a1
    headΦ60公/38母a1
    Core tube0.75米/根φ60The root1
    Alloy bitΦ60a1
    Sweep soil drillΦ73a1
    Pad fork the1
    Pull the fork the1
    Steering wheel Set of1

    (If high pressure pumps and water pipes are needed, please specify separately)
